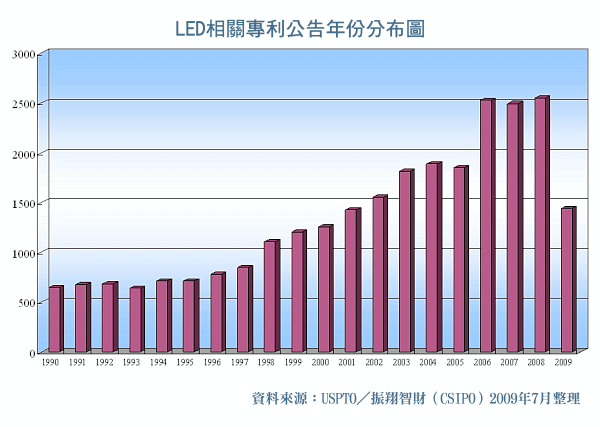

年份

專利數量

年份

專利數量

1990

649

2000

1258

1991

680

2001

1428

1992

687

2002

1556

1993

641

2003

1819

1994

715

2004

1893

1995

714

2005

1856

1996

783

2006

2532

1997

848

2007

2497

1998

1111

2008

2551

1999

1207

合計

26867

技術類別

專利數量

半導體裝置

4304

照明裝置

2543

光學元件

2074

電熱與電氣照明

1381

材料測試/分析

1351

影像通信

1305

數位資料處理

1192

非便攜式照明裝置

1068

診斷裝置

710

靜態指示裝置

597

一般車輛照明

411

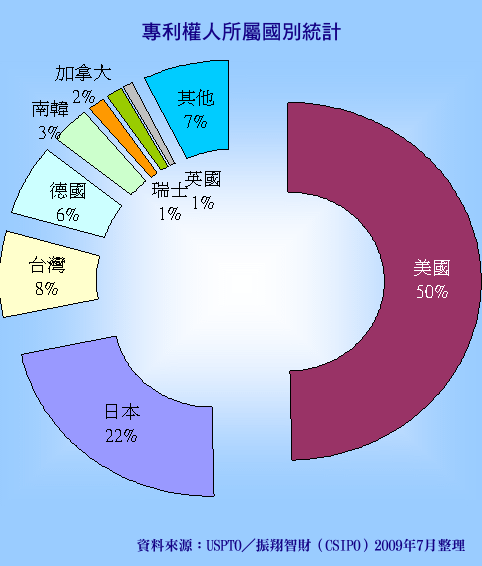

專利權國別

專利數量

美國

13365

日本

5833

台灣

2143

德國

1713

南韓

854

加拿大

418

瑞士

354

英國

191

其他

1956

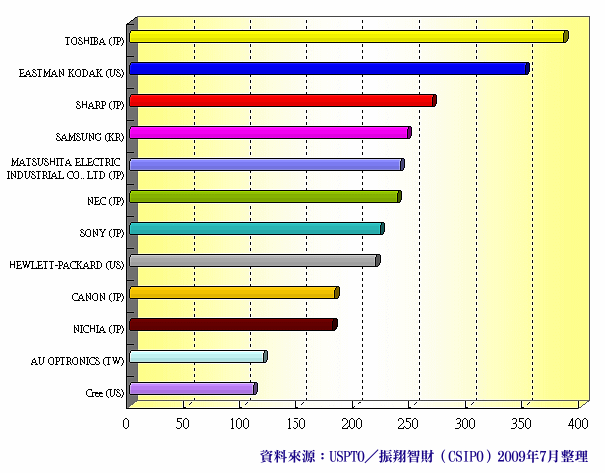

主要專利權人

專利數量

TOSHIBA(JP)

384

EASTMAN KODAK (US)

350

SHARP (JP)

268

SAMSUNG (KR)

246

MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD (JP)

240

NEC (JP)

237

SONY (JP)

222

HEWLETT-PACKARD (US)

218

CANON (JP)

182

NICHIA (JP)

180

AU OPTRONICS (TW)

118

Cree (US)

109

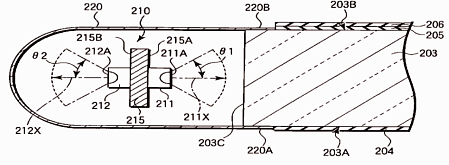

專利號碼

US7507010

申請日期

2006/10/23

專利名稱

Surface light source device and display device

公告日期

2009/3/24

摘要

A surface light source device includes a light source unit, a reflector that is disposed to surround the light source unit, and reflects radiation light from the light source unit, and a light guide having an incidence surface on which the radiation light from the light source unit is incident, and an emission surface from which incident light that is incident through the incidence surface is emitted. The light source unit includes a plurality of point light sources with different major radiation directions.

主要圖示

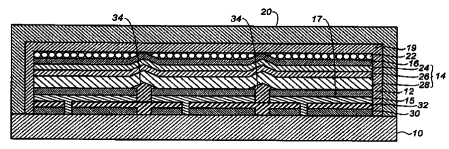

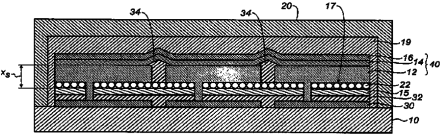

專利號碼

US7548021

申請日期

2005/9/22

專利名稱

OLED device having improved light output

公告日期

2009/6/16

摘要

 An organic light-emitting diode (OLED) device, comprising: first and second transparent electrodes, and one or more layers of organic material formed between the first and second transparent electrodes, the layers of organic material including one or more light-emitting layers; a reflective layer having a surface plasmon-polariton-supporting reflective surface located on a side of either of the first or second transparent electrodes opposite to the organic material layers; and a scattering layer in optical contact with the organic material layers and the electrodes. In certain embodiments, layer spacing is preferably designed such that the distance between the reflective surface and at least one of the one or more light-emitting layers is equal to or greater than 60 nm. Additionally, a low-index layer is preferably employed in various embodiments to improve device sharpness.

主要圖示

?

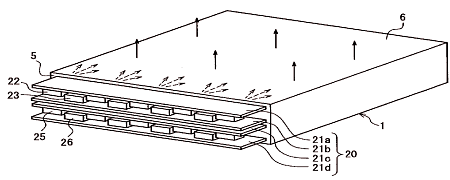

專利號碼

US7553060

申請日期

2005/6/22

專利名稱

Backlight device and liquid crystal display

公告日期

2009/6/30

摘要

A backlight apparatus of a sidelight type includes a light guide plate having an incident face on a lateral face and a light source unit having a plurality of substrates. The plurality of the substrates are respectively disposed on the incident face side of the light guide plate such that each of substrate faces of the substrates is parallel with a light exit face of the light guide plate, and the substrates are adjacent to one another in a thickness direction of the light guide plate. A plurality of light emitting devices that emit light along the substrate faces are mounted in columns on each of the substrate faces of the plurality of the substrates such that emitting directions of the light emitting devices are directed to the incident face.

主要圖示

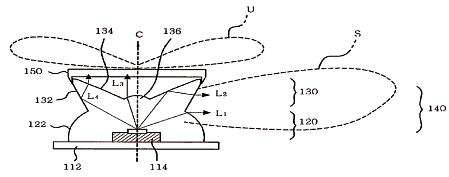

專利號碼

US7549769

申請日期

2006/8/29

專利名稱

LED lens for backlight

公告日期

2009/6/23

摘要

Disclosed herein is a Light Emitting Diode (LED) lens for a backlight. The LED lens includes an LED light source, a lens body, and a beam shaping element. The lens body is configured such that the LED light source is accommodated in the lower portion thereof, and light emitted from the LED light source is radiated in vertical and lateral directions of the lens body. The beam shaping element is fastened to the top of the lens body and is configured to adjust light beams radiated through the upper surface of the lens body. Accordingly, the uniformity of luminance and color can be increased and, at the same time, the overall performance of the system can be improved.

主要圖示
